Installing and troubleshooting a network requires more than understanding cables and connectors. Technicians must also know how to prepare cable, create reliable terminations, locate hidden cable runs, identify wiring faults, test network interfaces, and evaluate wired and wireless network conditions.
The CompTIA A+ Core 1 objectives include several common cabling and networking tools: cable strippers, crimpers, punchdown tools, cable testers, toner probes, loopback plugs, network taps, and Wi-Fi analyzers. Each tool serves a different purpose, and selecting the correct tool is an important part of efficient troubleshooting.
Some tools are used during installation. Others are used only after a connection fails. A technician should understand not only what each tool does, but also what it cannot prove. For example, a basic cable tester may confirm that all eight conductors are connected, but it may not confirm that the cable can reliably support a high-speed Ethernet connection.
Cable Strippers
A cable stripper removes the outer jacket from a copper network cable. It exposes the twisted wire pairs so that they can be arranged and terminated without damaging the insulation surrounding the individual conductors.
A typical twisted-pair Ethernet cable contains four color-coded wire pairs. The outer jacket protects these pairs from physical damage and helps keep them together. Before attaching a modular plug or terminating the cable on a keystone jack, the technician removes a short section of this jacket.
The stripping blade should cut only through the outer jacket. It should not cut into the insulation surrounding the individual conductors. If the tool is adjusted too deeply or rotated with excessive pressure, it may nick the copper wires inside.
A nicked conductor may not fail immediately. It may still pass a simple continuity test but later break when the cable is bent, moved, or placed under tension. Damage can also increase electrical resistance and contribute to intermittent connectivity or unreliable PoE operation.
After removing the jacket, the technician should inspect the conductors before continuing. If the insulation is cut, scraped, or visibly damaged, the affected section should be removed and stripped again.
Only as much jacket as necessary should be removed. Leaving long sections of the pairs exposed requires the technician to untwist more of the conductors, which can increase crosstalk and reduce cable performance.
Crimpers

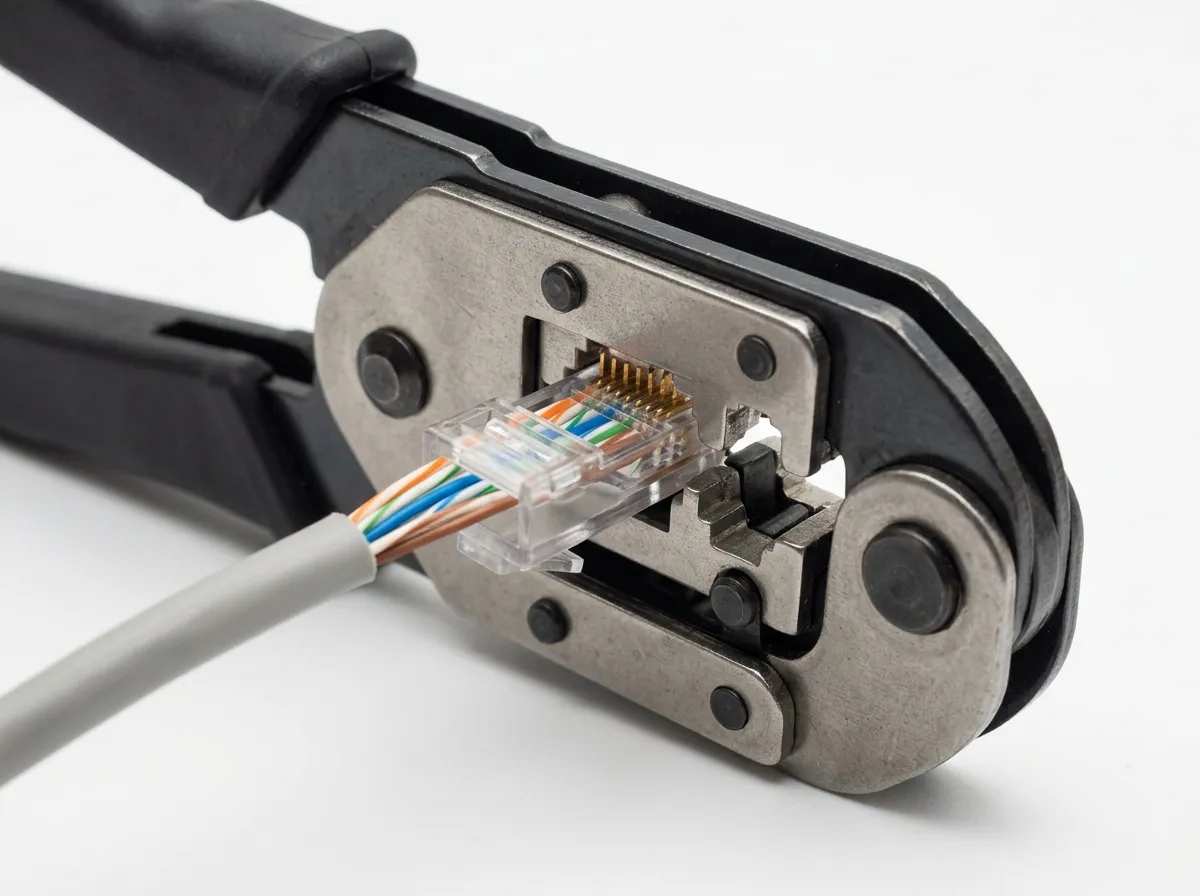

A crimper attaches a modular Ethernet plug to the end of a twisted-pair cable. The connector commonly used for copper Ethernet resembles an RJ45 telephone-style plug but contains eight contact positions for the cable’s eight conductors.
Before crimping, the technician arranges the conductors according to either the T568A or T568B wiring standard. The wires are straightened, trimmed evenly, and inserted fully into the connector.
When the crimper is squeezed, it performs two important actions. First, it pushes the metal contacts inside the plug into the individual conductors. Second, it presses the connector’s strain-relief section against the cable jacket.
Proper strain relief is important because movement or pulling force should be applied to the cable jacket rather than directly to the conductors. If the jacket does not extend far enough into the connector, the individual wires may carry the mechanical stress and eventually loosen or break.
Common crimping mistakes include:
Arranging the conductors in the wrong order
Failing to push the wires completely into the plug
Leaving too much untwisted wire outside the jacket
Placing the cable jacket outside the strain-relief area
Using a plug that does not match the conductor type
Failing to compress the crimper completely
Solid-conductor and stranded-conductor cables may require different connector designs. Solid cable is normally used for permanent runs inside walls, while stranded cable is commonly used for flexible patch cables. Using the wrong modular plug can produce a connection that appears correct but becomes unreliable over time.
After a connector has been crimped, the cable should be tested rather than judged only by appearance.
Punchdown Tools
A punchdown tool terminates copper conductors on insulation displacement connectors, commonly called IDC terminals. These terminals are found on keystone jacks, patch panels, and certain telecommunications blocks.
Unlike a crimper, a punchdown tool does not attach a plug to the end of the cable. Instead, it presses each insulated conductor into a narrow metal slot. The slot cuts through the insulation and makes direct electrical contact with the copper conductor.
Punchdown tools are commonly used when installing permanent structured cabling. One end of the horizontal cable may terminate at a keystone wall jack, while the other end terminates on the rear of a patch panel.
Terminating a Keystone Jack

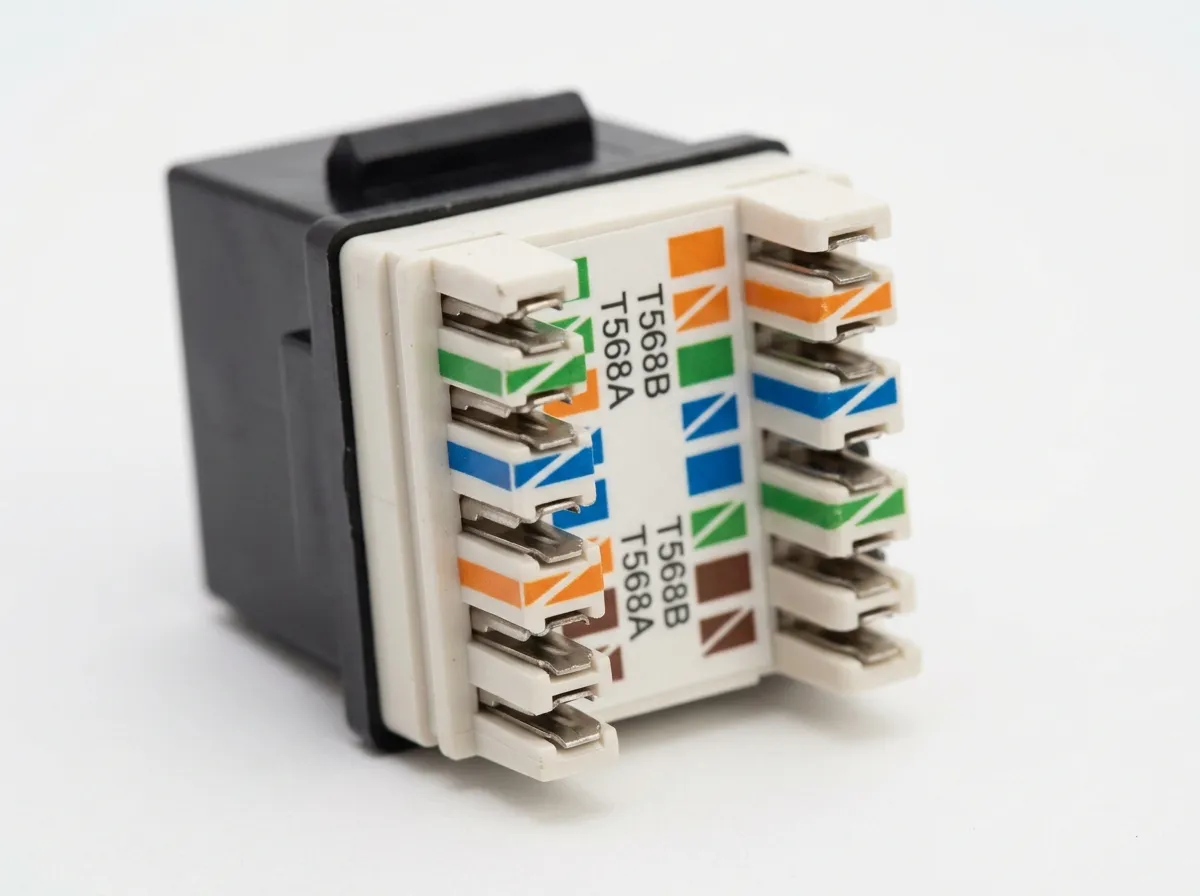

The back of a keystone jack contains color-coded terminals showing the T568A and T568B wiring patterns. The technician selects one standard and uses the same standard at both ends of the cable run.
The cable jacket should extend as close to the terminals as possible. Each twisted pair should remain twisted until it reaches its assigned connection point. Excessive untwisting can increase crosstalk and reduce the cable’s ability to support its rated speed.
Each conductor is placed into the appropriate slot and then pressed firmly into position with the punchdown tool.
Terminating a Patch Panel
The rear of a patch panel uses a similar set of color-coded IDC terminals. Each group of terminals corresponds to one numbered port on the front of the panel.
The technician punches down the permanent cable run on the rear. A short patch cable can then connect the front of the patch panel to a switch.
Accurate labels should be added during the termination process. In a rack containing dozens of cables, unlabeled runs can become difficult to trace and may result in the wrong device being disconnected.
Cutting and Non-Cutting Punchdown Blades

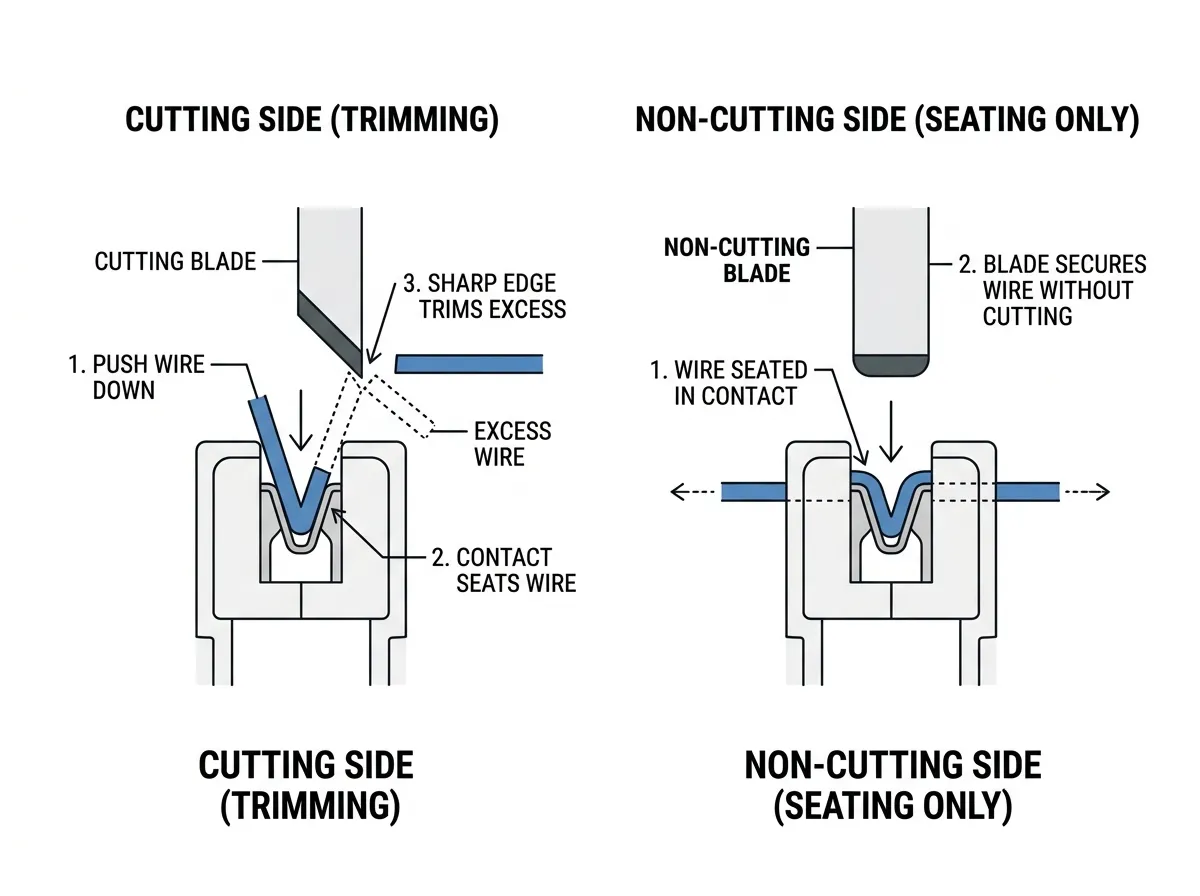

Many punchdown blades have two different sides. One side seats the wire and cuts away the excess conductor. The other side seats the wire without cutting it.
The cutting edge must face the unused end of the conductor. If it faces toward the active cable, the tool may cut the conductor that is supposed to remain connected.
This is one of the most common punchdown mistakes. The wire may appear seated correctly, but the connection will be open because the conductor was cut on the wrong side of the terminal.
Before using the tool, the technician should inspect the blade and confirm the position of the cutting edge.
Replaceable Punchdown Blades
Professional punchdown tools often use replaceable blades. Different blades may be designed for different terminal systems, such as 66 blocks or 110-style blocks.
Keystone jacks and Ethernet patch panels commonly use 110-style terminations.
A worn blade may fail to seat the conductor completely or may require excessive force. A damaged cutting edge can leave excess wire attached or damage the terminal.
The technician should use the blade intended for the termination type and replace it when it becomes worn or damaged.
Cable Testers
A cable tester checks the electrical connections inside a copper network cable. It can help determine whether the conductors are continuous and whether they are connected to the correct pins.
A basic tester normally includes a main unit and a detachable remote unit. One end of the cable connects to the main tester, while the opposite end connects to the remote.
The tester sends a signal through each conductor and displays where that signal is received. This creates a wire map showing how the pins on one end connect to the pins on the other.
Cable testers are useful for checking:
Patch cables
Wall-jack connections
Patch-panel terminations
Newly crimped connectors
Suspected damaged cable runs
A technician should test a cable after installation or repair rather than waiting for a user to report a problem.
Continuity and Wire Maps
Continuity means that an electrical path exists from one end of a conductor to the other. If pin 1 on one end connects correctly to pin 1 on the other end, that conductor has continuity.
A wire map shows the complete pin-to-pin relationship for the cable. In a normal straight-through Ethernet cable, each pin should connect to the same numbered pin at the opposite end.
A cable may fail because a wire is disconnected, connected to the wrong position, touching another wire, or paired incorrectly.
Open Circuit
An open occurs when a conductor does not form a complete electrical path from one end of the cable to the other.
Possible causes include:
A broken conductor
A wire that did not reach the contact inside a modular plug
A weak or incomplete crimp
A conductor that was not fully seated in an IDC terminal
A conductor accidentally cut by a punchdown blade
Physical damage somewhere along the cable run
An open may prevent the Ethernet link from forming. In some cases, a cable may connect at a slower speed if only certain conductors are open.
For example, Gigabit Ethernet normally requires all four wire pairs. A cable with one damaged pair might fail to establish a Gigabit link or fall back to a slower speed.
Short Circuit
A short occurs when two conductors that should remain separate make unintended electrical contact.
This may be caused by exposed copper, damaged insulation, incorrect termination, a crushed cable, or a defective connector.
A short can prevent data transmission and may also interfere with Power over Ethernet.
