Copper Ethernet cabling is widely used to connect computers, switches, routers, wireless access points, printers, security cameras, and other devices within local area networks. It is relatively inexpensive, easy to install, and capable of supporting gigabit and multi-gigabit network speeds.

Most modern copper Ethernet cable contains four twisted pairs of insulated copper conductors. The cable’s category, construction, shielding, jacket rating, termination quality, and length all affect the connection’s performance and suitability for a particular environment.

An A+ technician should be able to identify common cable categories, select the correct cable for an installation, recognize environmental cable ratings, and troubleshoot problems caused by excessive length, interference, physical damage, or improper installation.

Twisted-Pair Ethernet Cable Construction

A standard copper Ethernet cable contains eight individual conductors arranged into four pairs.

Each pair contains two insulated copper wires twisted around each other. The four pairs are identified by color:

• Blue and white-blue

• Orange and white-orange

• Green and white-green

• Brown and white-brown

The exact placement of these conductors inside an RJ45 connector is determined by the T568A or T568B wiring standard.

The Four Twisted Pairs

The four pairs carry electrical signals between Ethernet devices.

Modern Gigabit Ethernet and faster copper Ethernet standards normally use all four pairs. Older 10 Mbps and 100 Mbps Ethernet standards commonly use only two pairs.

This difference provides an important troubleshooting clue. A damaged cable may still establish a 100 Mbps connection even though it can no longer support 1 Gbps.

For example, if one conductor in the brown pair becomes disconnected, the cable may fail to negotiate at gigabit speed but continue operating at 100 Mbps using the remaining functional pairs.

Copper Conductors

The conductors carry the electrical signals that represent network data.

Ethernet cables may use solid copper, stranded copper, or lower-quality copper-clad aluminum conductors.

Solid copper is preferred for permanent network installations because it provides reliable signal performance and power delivery. Copper-clad aluminum is less expensive but has greater electrical resistance, is more fragile, and may perform poorly with Power over Ethernet.

For reliable network installations, technicians should use cable containing conductors made from solid copper rather than copper-clad aluminum.

Conductor Insulation

Each copper conductor is surrounded by insulation.

The insulation prevents the conductors from touching one another and creating an electrical short. It also helps maintain the spacing and electrical characteristics required for network communication.

The insulation is color coded so technicians can arrange the conductors according to the correct wiring standard.

When terminating a cable, the individual conductor insulation should normally remain in place. An RJ45 connector or punchdown terminal makes contact with the conductor by cutting through or displacing the insulation.

The Cable Jacket

The outer cable jacket surrounds and protects the twisted pairs.

The jacket helps protect the conductors from:

• Physical damage

• Moisture

• Dust

• Sunlight

• Heat

• Chemicals

• Excessive bending

• Environmental exposure

Different jackets are designed for different environments. An indoor general-purpose cable does not provide the same protection as a plenum-rated, riser-rated, outdoor, or direct-burial cable.

The jacket may be marked with useful information, including:

• Cable category

• Shielding type

• Conductor size

• Jacket rating

• Manufacturer

• Certification markings

• Length indicators

Technicians should inspect these markings when identifying an installed cable.

Why Ethernet Pairs Are Twisted

The wires in each pair are twisted to reduce electromagnetic interference and crosstalk.

When electrical signals travel through copper conductors, they create electromagnetic fields. Nearby electrical equipment or other wire pairs may also produce fields that interfere with the network signal.

Twisting the two conductors causes outside interference to affect both wires in a similar way. The receiving Ethernet device compares the electrical difference between the two conductors and can reject much of the interference that affects them equally.

This is called differential signaling.

The amount of twisting varies among the pairs. Different twist rates help prevent one pair from consistently interfering with another pair inside the same cable.

Crosstalk

Crosstalk occurs when the electrical signal from one wire pair interferes with the signal on another pair.

Too much crosstalk can cause:

• Transmission errors

• Packet retransmissions

• Reduced throughput

• Lower negotiated speed

• Intermittent connectivity

• Complete connection failure

Higher cable categories use improved manufacturing, tighter twisting, separators, and sometimes shielding to reduce crosstalk.

Technicians should avoid untwisting the pairs more than necessary during termination. Excessive untwisting near an RJ45 connector, keystone jack, or patch panel can reduce cable performance.

Ethernet Cable Categories

Ethernet cable categories define performance levels for twisted-pair cabling. Higher category numbers generally support higher frequencies, improved crosstalk resistance, and faster Ethernet connections.

The categories students are most likely to encounter include Cat 5, Cat 5e, Cat 6, Cat 6a, and Cat 8.

Cat 5

Category 5 is a legacy cable type.

Cat 5 was commonly used for 10 Mbps and 100 Mbps Ethernet networks. It may still be found in older homes and business installations, but it is no longer recommended for new cabling projects.

Cat 5 should not be confused with Cat 5e. Cat 5e was improved to support Gigabit Ethernet more reliably.

Typical characteristics of Cat 5 include:

• Commonly associated with 100 Mbps Ethernet

• Normal Ethernet distance of up to 100 meters

• Usually unshielded

• Lower cost when originally installed

• Found mainly in legacy installations

If an older building contains Cat 5 cabling, an organization may need to replace it before upgrading to modern multi-gigabit network speeds.

Cat 5e

Category 5 enhanced, commonly called Cat 5e, is one of the most widely installed Ethernet cable types.

Cat 5e was designed to reduce crosstalk and support Gigabit Ethernet at distances up to 100 meters.

It can also support 2.5 Gbps and 5 Gbps Ethernet in many installations, depending on cable quality, environmental conditions, and hardware support.

Typical characteristics include:

• Supports 1 Gbps at up to 100 meters

• May support 2.5 or 5 Gbps

• Usually available as UTP

• Relatively inexpensive

• Flexible and easy to install

• Common in homes and existing offices

Cat 5e is often sufficient for basic desktop connections, printers, home networks, and other general-purpose installations.

Cat 6

Category 6 provides better crosstalk protection and higher performance than Cat 5e.

Cat 6 supports 1 Gbps Ethernet at up to 100 meters. It can also support 10 Gbps Ethernet across shorter distances, commonly up to approximately 55 meters under suitable installation conditions.

Many Cat 6 cables include an internal separator that helps keep the four pairs apart. This reduces interference between the pairs.

Typical characteristics include:

• Supports 1 Gbps at up to 100 meters

• Supports 10 Gbps across shorter runs

• Better crosstalk resistance than Cat 5e

• Thicker and less flexible than Cat 5e

• Moderate cost

• Suitable for new home and office installations

Cat 6 is a common choice when an installer wants better performance and future upgrade potential without the size and cost of Cat 6a.

Cat 6a

Category 6 augmented, commonly called Cat 6a, is designed to support 10 Gbps Ethernet at distances up to 100 meters.

Cat 6a provides better protection against alien crosstalk. Alien crosstalk is interference entering a cable from nearby Ethernet cables rather than from pairs inside the same cable.

Cat 6a may be unshielded or shielded. It is normally thicker and less flexible than Cat 5e or Cat 6.

Typical characteristics include:

• Supports 10 Gbps at up to 100 meters

• Improved resistance to crosstalk

• Common in business and data-center installations

• Better suited for high-bandwidth access points and workstations

• Larger bend radius

• More difficult to route and terminate

• Higher cost than Cat 5e or Cat 6

Cat 6a is a strong choice for new business installations that are expected to support 10 Gbps connections.

Cat 8

Category 8 is a specialized high-speed twisted-pair cable.

Cat 8 is designed for short-distance 25 Gbps and 40 Gbps Ethernet connections. Its maximum channel length is generally much shorter than the normal 100-meter Ethernet limit, commonly around 30 meters.

Cat 8 is shielded and is mainly intended for data centers, server rooms, and switch-to-server connections.

Typical characteristics include:

• Supports 25 or 40 Gbps

• Short maximum channel distance

• Requires shielding

• Thick and relatively difficult to install

• High cost

• Used mainly in specialized data-center environments

Cat 8 is normally unnecessary for home desktop connections or ordinary office cabling. Installing Cat 8 does not increase network speed unless the connected hardware also supports the required Ethernet standard.

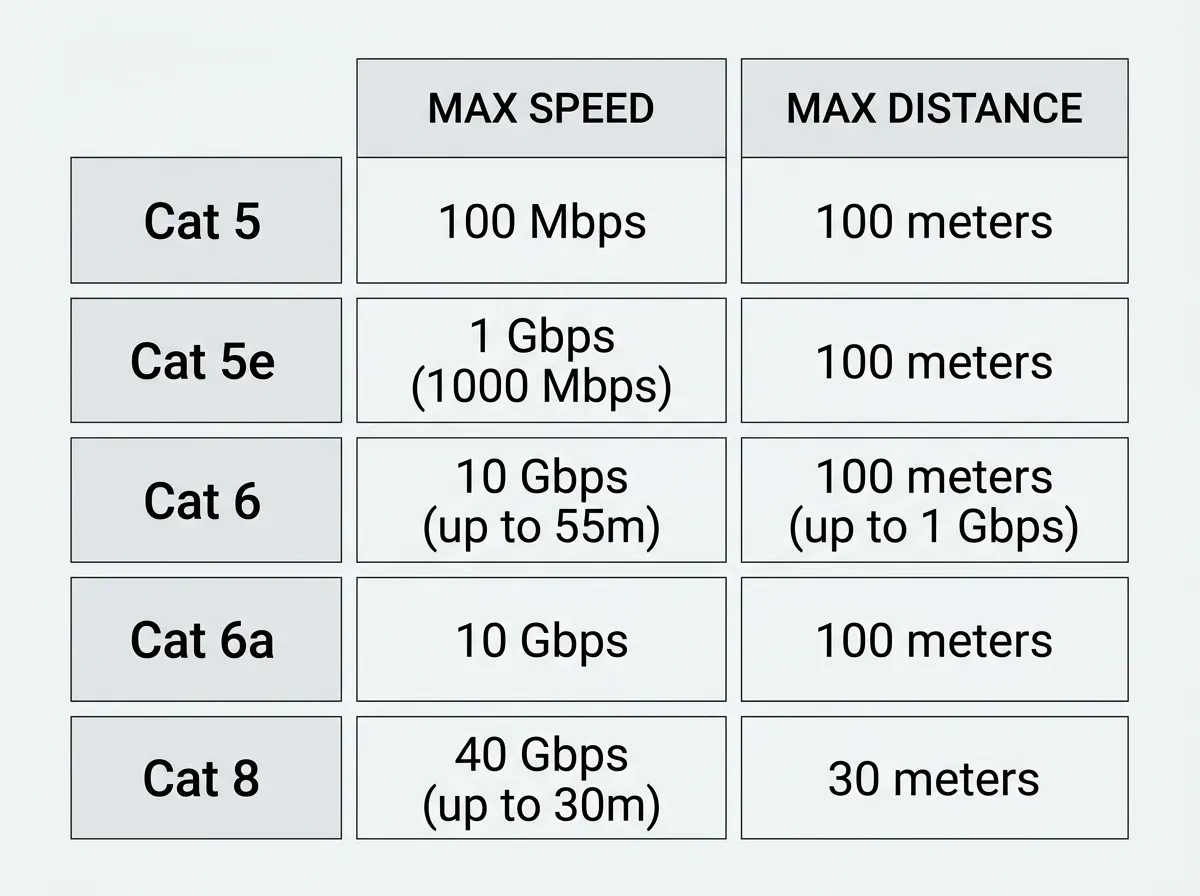

Cable Category Comparison

These values assume properly manufactured, installed, and terminated cabling.

Cat 5e vs. Cat 6 vs. Cat 6a

Cat 5e, Cat 6, and Cat 6a are the categories technicians are most likely to choose between for home and business installations.

The correct selection depends on the required network speed, cable distance, budget, environment, and expected future use.

Basic Desktop Connection

For a basic desktop computer using a 1 Gbps network connection, Cat 5e is normally sufficient.

A known-good Cat 5e cable can support Gigabit Ethernet at up to 100 meters. It is inexpensive, flexible, and easy to install.

Cat 6 can also be used and may be preferred when installing new cable because it provides greater performance margin and better resistance to crosstalk.

For a basic 1 Gbps desktop connection:

• Cat 5e is sufficient.

• Cat 6 provides additional future flexibility.

• Cat 6a is normally unnecessary unless a future 10 Gbps upgrade is planned.

New Home Installation

For a new home installation, Cat 6 is often a practical choice.

It provides reliable gigabit performance, supports multi-gigabit connections, and may support 10 Gbps on shorter runs. The cost difference between Cat 5e and Cat 6 may be relatively small compared with the labor required to install cable inside walls.

Cat 6a may be appropriate when the homeowner expects to use 10 Gbps networking, high-performance network storage, or long-term infrastructure that will be difficult to replace.

New Office Installation

For a new office installation, Cat 6 or Cat 6a is generally more appropriate than Cat 5e.

Cat 6 may be sufficient when most devices use 1 Gbps or 2.5 Gbps connections.

Cat 6a is the better choice when the organization expects:

• 10 Gbps desktop connections

• High-performance wireless access points

• Large file transfers

• Video-production workloads

• Long-term cabling use

• High device density

• Significant PoE deployment

The cable itself is only part of the cost. Cat 6a may require larger cable pathways, compatible patch panels, appropriate keystone jacks, and more careful installation.

Ten-Gigabit Connection

For a 10 Gbps copper Ethernet connection, Cat 6a is the safest choice across a normal 100-meter structured cabling channel.

Cat 6 may support 10 Gbps across shorter runs, commonly up to approximately 55 meters. Performance may be affected by bundling, interference, installation quality, and cable conditions.

For dependable 10 Gbps operation:

• Use Cat 6a for runs approaching 100 meters.

• Use properly rated patch panels and keystone jacks.

• Confirm that both devices support 10 Gbps.

• Verify that patch cables also meet the required category.

• Test the completed cable run.

PoE Security-Camera Deployment

Cat 5e, Cat 6, and Cat 6a can all carry Power over Ethernet when properly installed.

For a small indoor security-camera deployment, Cat 5e may be sufficient when the camera uses a 100 Mbps or 1 Gbps connection and has modest power requirements.

Cat 6 may be preferred for new camera installations because it provides thicker conductors in many cable designs, improved performance, and greater future flexibility.

Cat 6a may be useful for:

• High-power PoE devices

• Large cable bundles

• Long cable runs

• Electrically noisy environments

• Outdoor shielded installations

• High-performance cameras or access points

The technician should verify the PoE standard, cable conductor size, cable temperature rating, and switch power budget.

UTP vs. STP Cabling

Twisted-pair Ethernet cable may be unshielded or shielded.

Unshielded twisted pair is commonly abbreviated UTP.
