Fiber-optic cabling carries network data as pulses of light rather than electrical signals. It is commonly used for high-speed network backbones, connections between switches, data-center links, internet service provider networks, and long-distance building connections.
Fiber can transmit data at very high speeds over much greater distances than twisted-pair copper cabling. It is also resistant to electromagnetic interference, making it useful in environments where electrical equipment could disrupt copper network signals.
CompTIA A+ technicians should understand how fiber works, recognize common fiber types and connectors, follow safe handling procedures, and determine when fiber is more appropriate than copper Ethernet cabling.
Fiber-Optic Networking Fundamentals
A fiber-optic cable contains one or more extremely thin strands of glass or plastic called fibers. Network data is converted into pulses of light and transmitted through the fiber. A receiving device converts those light pulses back into data.
Each fiber strand contains several layers. The core is the central portion through which light travels. The cladding surrounds the core and helps reflect light back toward the center. Protective coatings and an outer jacket protect the delicate fiber from moisture, bending, crushing, and physical damage.
Unlike copper Ethernet cable, fiber does not carry electrical current. This gives fiber several important advantages.
Distance
Fiber can carry network signals much farther than copper Ethernet cabling. Standard twisted-pair Ethernet runs are generally limited to approximately 100 meters, including patch cables. Fiber connections can extend hundreds of meters or several kilometers, depending on the fiber type, network standard, transceiver, and equipment being used.
Because of its greater range, fiber is frequently used between telecommunications rooms, floors, buildings, and distant network locations.
Bandwidth
Fiber supports very high data-transfer rates. It is commonly used for 10 Gbps, 40 Gbps, 100 Gbps, and faster network connections.
Copper Ethernet also supports high speeds, but its maximum distance may decrease when faster standards are used. Fiber is therefore commonly selected for high-speed network backbones and data-center links.
Electromagnetic Interference
Copper cables carry electrical signals and may be affected by electromagnetic interference, or EMI. Motors, fluorescent lighting, industrial machinery, generators, and high-voltage electrical systems can interfere with copper network signals.
Fiber transmits light instead of electricity, so it is not affected by EMI or radio-frequency interference. Fiber is often preferred in factories, medical facilities, power plants, and other electrically noisy environments.
Fiber also does not produce electrical interference that could affect nearby cables.
Cost
Fiber cabling, connectors, transceivers, testing tools, and installation labor are generally more expensive than basic copper Ethernet equipment.
Copper cables are inexpensive, easy to terminate, and commonly supported by desktop computers and network devices. This makes copper the practical choice for many short-distance endpoint connections.
The total cost of fiber may be justified when a network requires greater speed, longer distance, electrical isolation, or resistance to interference.
Handling
Fiber is more sensitive to bending, crushing, contamination, and improper handling than copper Ethernet cable. A fiber strand can be damaged internally even when the outer jacket appears normal.
Fiber connectors must also remain extremely clean. Dust, fingerprints, oil, or other contamination can block or scatter the light signal and cause poor performance.
Copper Ethernet cable is generally more tolerant of everyday handling and can be terminated using relatively inexpensive tools. Fiber installation and repair often require specialized training, cleaning supplies, test equipment, and termination tools.
Single-Mode and Multimode Fiber
The two major fiber categories used in computer networks are single-mode fiber and multimode fiber. The primary differences involve the size of the fiber core, the type of light source, supported distance, equipment cost, and deployment environment.
Single-Mode Fiber
Single-mode fiber has a very small core, typically approximately 9 microns in diameter. The small core allows a single primary path, or mode, of light to travel through the cable.
Because the light follows a more direct path, the signal experiences less modal dispersion. Modal dispersion occurs when different light paths arrive at the destination at slightly different times. Reducing this effect allows single-mode fiber to carry signals over much greater distances.
Single-mode fiber normally uses a laser as its light source. Laser transmitters produce a narrow and highly focused light signal that can travel long distances through the small core.
Single-mode fiber is commonly used for:
Internet service provider networks
Telecommunications systems
Connections between distant buildings
Metropolitan and wide-area networks
Long-distance network backbones
High-speed data-center connections
Single-mode fiber cable may not always be dramatically more expensive than multimode cable, but the optical transceivers and related equipment have traditionally been more expensive.
Single-mode fiber is usually identified by a yellow outer jacket, although technicians should always verify printed cable markings because jacket colors are not guaranteed in every installation.
Multimode Fiber
Multimode fiber has a larger core than single-mode fiber. Common multimode core sizes include 50 microns and 62.5 microns.
The larger core allows multiple paths, or modes, of light to travel through the cable at the same time. These light paths may reflect through the fiber at different angles and arrive at the receiver at slightly different times.
This modal dispersion limits the maximum distance of multimode fiber, especially at higher network speeds.
Multimode fiber commonly uses light-emitting diodes or vertical-cavity surface-emitting lasers, known as VCSELs. These light sources and their associated transceivers are generally less expensive than long-distance single-mode equipment.
Multimode fiber is commonly used for:
Connections within a building
Network equipment rooms
Short data-center links
Campus networks
Connections between nearby switches
High-speed local network backbones
The maximum distance depends on the multimode fiber category, transceiver type, and Ethernet standard. Some multimode links may support several hundred meters, while faster standards may have shorter distance limits.
Multimode fiber is commonly identified by orange, aqua, violet, or lime-green jackets, depending on its classification. Printed markings should be used to confirm the exact fiber type.

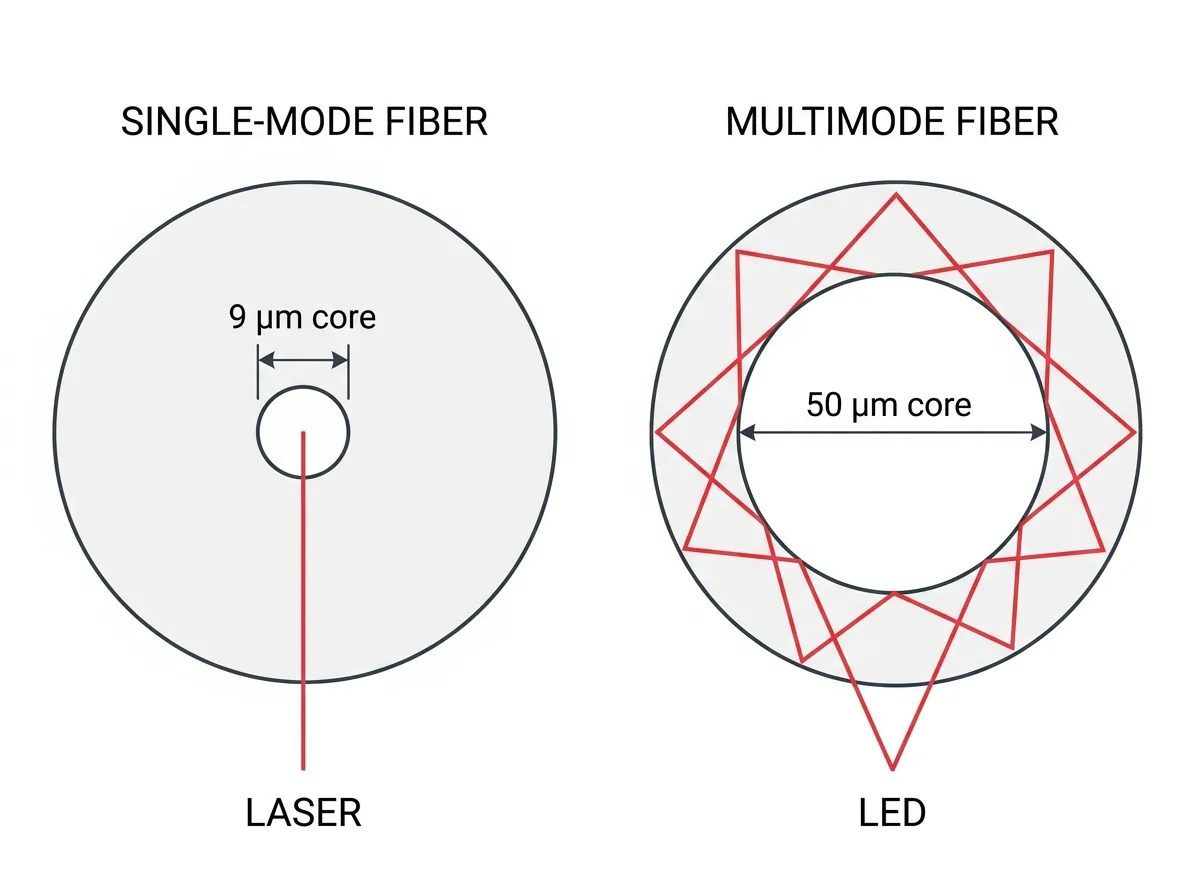

Comparing Single-Mode and Multimode Fiber
Single-mode fiber has a smaller core and normally uses a laser light source. It supports much longer distances and is common in telecommunications, building-to-building connections, and service-provider networks.
Multimode fiber has a larger core and may use LEDs or VCSELs. It is generally intended for shorter distances and is common inside buildings, equipment rooms, and data centers.
Single-mode equipment may have a higher initial cost, but it provides greater distance and may offer more flexibility for future network upgrades. Multimode equipment is often cost-effective for shorter network links.
The fiber type must match the installed transceivers. A technician should not assume that single-mode and multimode fiber can be connected interchangeably. The cable, connector, wavelength, transceiver, and network standard must all be compatible.
Fiber Connectors
Fiber connectors align the core of one fiber with the transmitter, receiver, or another fiber. Precise alignment is necessary because the fiber core is extremely small.
CompTIA A+ technicians should be able to visually identify ST, SC, and LC fiber connectors.

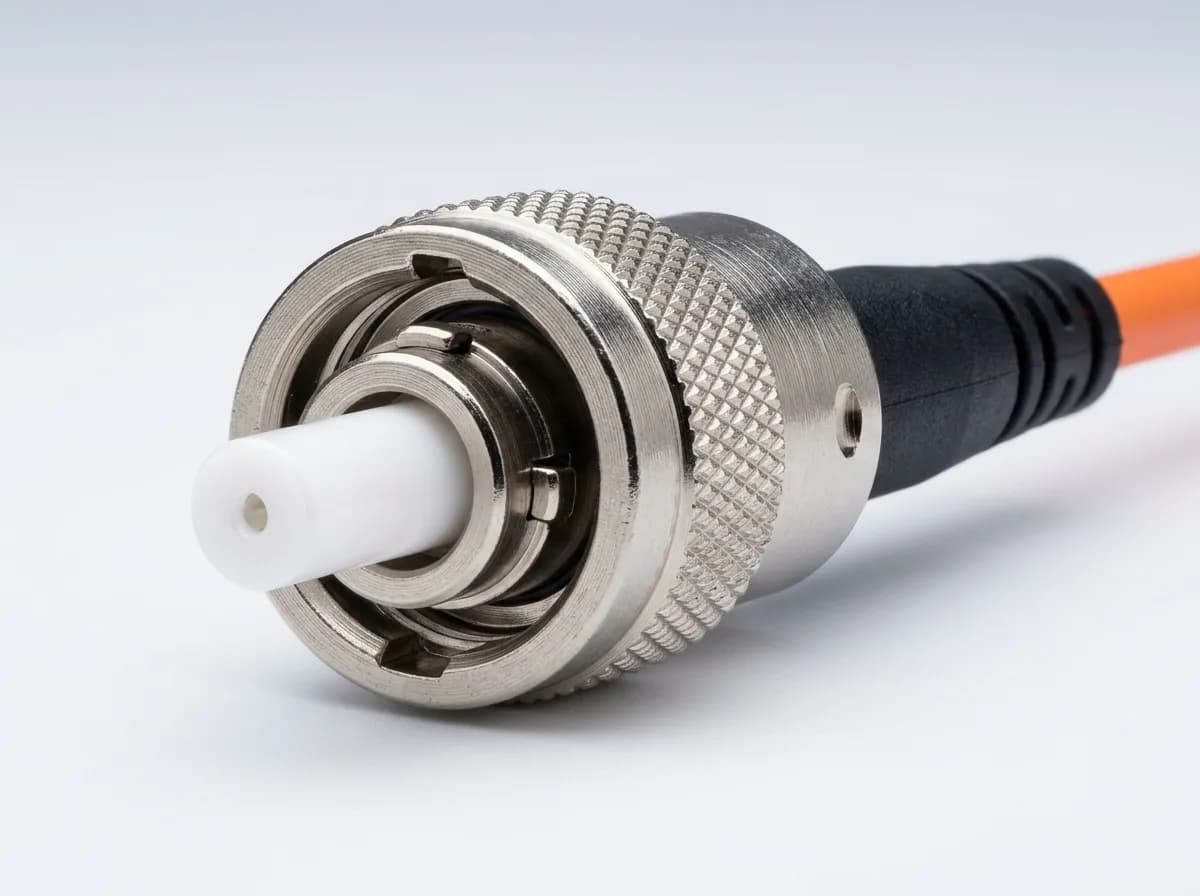

ST Connector
The straight-tip connector, commonly called an ST connector, has a round body and a twist-lock attachment mechanism.
To connect it, the technician inserts the connector and twists it until it locks into position. Its locking method is sometimes compared to a bayonet-style connection.
Important identifying features include:
Round connector body
Exposed cylindrical ferrule
Twist-lock mechanism
Usually one connector per fiber strand
ST connectors were common in older fiber networks and may still be found in existing installations, industrial systems, laboratories, and educational environments.
