What is Universal Flash Storage?

What is Universal Flash Storage?

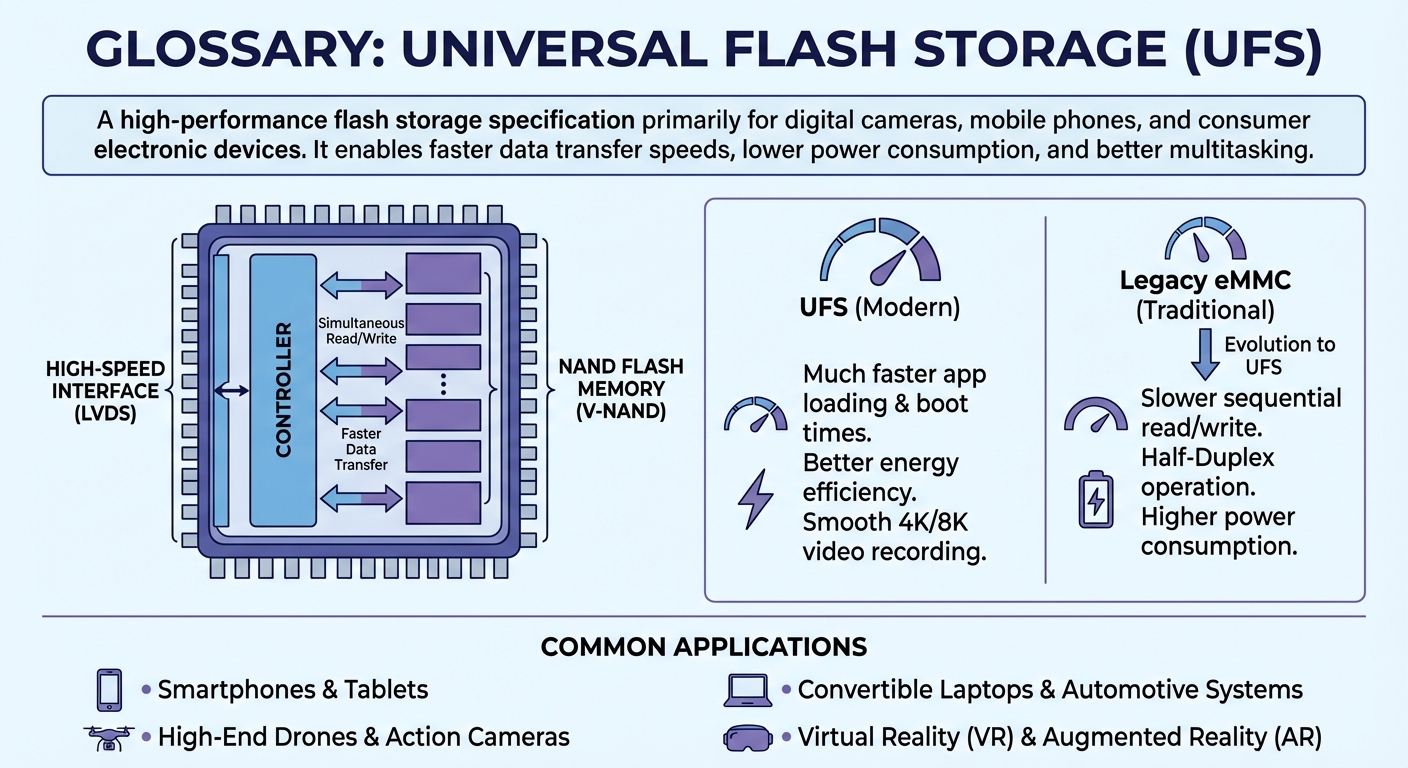

Universal Flash Storage (UFS) is a flash memory standard developed by the JEDEC Solid State Technology Association. It was designed to address the limitations of previous mobile storage technologies like eMMC (embedded MultiMediaCard), providing faster data transfer speeds, lower power consumption, and enhanced features for mobile devices and other embedded systems.

How Does UFS Work?

UFS is based on the SCSI command set and utilizes a high-speed serial interface, allowing for parallel data transfers and increased performance compared to older storage standards. Key technical features of UFS include:

1. High-Speed Interface: UFS supports data transfer rates up to 23.2 Gbps (UFS 3.1), enabling much faster read and write speeds than eMMC or SATA-based storage.
2. Dual-Lane Architecture: UFS uses a dual-lane interface, allowing simultaneous read and write operations to increase overall throughput.
3. Command Queuing: UFS supports the use of command queues, enabling the storage controller to optimize the order of operations for maximum efficiency.
4. Power Efficiency: UFS includes power management features like rapid sleep/wake transitions and the ability to enter low-power modes when inactive to conserve battery life.
5. Advanced Error Correction: UFS incorporates advanced error detection and correction capabilities to ensure data integrity, even in challenging mobile environments.

Key UFS Components and Concepts

The main components of a UFS storage system include:

1. UFS Host: The processor or controller that manages access to the UFS storage device.
2. UFS Device: The flash storage module, which can include one or more NAND flash memory chips.
3. UFS Interconnect: The high-speed serial interface that connects the host and device, enabling data transfer.

UFS also introduces several key concepts for optimizing performance and power efficiency:

1. Logical Units (LUs): Logical partitions within the UFS device that can be accessed independently.
2. Queue Depth: The number of outstanding commands the host can issue to the UFS device concurrently.
3. Provisioning Target: A mechanism for the host to communicate performance requirements to the UFS device.

Common UFS Use Cases

UFS is primarily used in mobile devices such as smartphones, tablets, and wearables, where it provides a significant performance and power efficiency advantage over previous storage standards. UFS is also finding adoption in other embedded systems, automotive applications, and even consumer electronics like digital cameras.

Best Practices and Considerations

When working with UFS storage, it's important to consider the following:

1. Performance Tuning: Optimizing queue depth, provisioning targets, and other UFS parameters can significantly impact real-world performance.
2. Reliability and Data Integrity: UFS includes advanced error correction, but regular backups and data integrity checks are still essential.
3. Repairability and Upgradability: UFS storage is often soldered directly to the motherboard, limiting repair and upgrade options for end-users.

UFS represents a significant advancement in mobile storage technology, enabling faster data access, improved power efficiency, and enhanced reliability for modern mobile devices and embedded systems.
